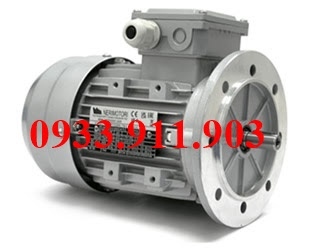

Model: IPM 71A V230

Hãng: Nerimotori Viet Nam

ĐẶC TÍNH KỸ THUẬT:

Công suất: 0.55 Kw

Nguồn điện : 230 V

1 pha, 6 cực

Tần số: 75 [Hz]

Nhiệt độ: -15 ~ +40 [°C]

Hotline: 0933.911.903

Mail: thietbicongnghiepltt@gmail.com

Liên hệ với chúng tôi để có thêm thông tin và giá tốt nhất!

IPM 71A V230

BRUSHLESS SYNCHRONOUS MOTORS

Energy efficiency, reliability and high performance in a single product.

The PM IE4 motor makes it possible to obtain a return on the initial investment after few months from its start-up, as electricity consumption decreases compared to an IE1 motor.
In addition to having these real economic savings, the use of IE4 motors increases the reliability and performance of the entire system.

TECHNICAL FEATURES

• IPM 71A V230

			IPM 71A 0,55-1,1kW 230V IE4
SINGLE-PHASE 230V INVERTER POWER SUPPLY
MOTOR IC411 (self-ventilated)			0,55 kW	1,1 kW
Description	Symbol	Units of measure	Nominal Speed
			1500 RPM	3000 RPM
Frequency	f	[Hz]	75	150
Number of Poles	2p		6	6
Maximum No-load speed	n_max	[RPM]	2600	4600
Constant voltage	Ke	[V_rms/KRPM]	108,7	54,3
Constant torque	Kt	[Nm/A_rms]	1,75	0,87
Rated torque	Cnom	[Nm]	3,5	3,5
Rated current	Inom	[A_rms]	2	4
Efficienza / Efficiency	η	[%]	83,9	85,2
Maximum torque	Cmax	[Nm]	4,3	4,2
Maximum torque current	Imax	[A_rms]	2,5	4,9
Minimum switching requency	f_switch	[kHz]	4	4
Phase resistance @T_amb	Rs	[Ω]	9,1	2,7
Direct axis inductance	Ld	[mH]	30,3	7,1
Quadrature axis inductance	Lq	[mH]	35,2	7,6
Magnetic flux	ϕe	[mWb]	0,275	0,137
Motor weight	P	[kg]	5,4
Room temperature	T_amb	[°C]	-15 ÷ 40
IP degree of protection	IP		55
Insulation class			F
Overtemperature	Dt	[°C]	33	34
Type of service			S1



OPERATING TORQUE CURVE 0,55KW - 1500 RPM



OPERATING POWER CURVE 0,55KW - 1500 RPM





OPERATING TORQUE CURVE 1,1KW - 3000 RPM



OPERATING POWER CURVE 1,1KW - 3000 RPM

IE4 synchronous motors
TYPE	Vn INVERTER	Power		Speed	In	Cn
	V	kW	hp	rpm	A	Nm
IPM 71A V230	230	0,55	0,75	1500	2	3,5
		1,1	1,5	3000	4
IPM 71B V230	230	0,75	1	1500	3,1	4,8
		1,5	2	3000	6,2
IPM 71C V230	230	1,1	1,5	1500	4,2	7
		2,2	3	3000	8,4
IPM 71C V400	400	1,1	1,5	1500	2,4	7
		2,2	3	3000	4,8
IPM 80A V230	230	0,75	1	1500	3	4,8
		1,5	2	3000	6
IPM 80B V400	400	1,1	1,5	1500	2,5	7
		2,2	3	3000	5
IPM 80C V400	400	1,5	2	1500	3,2	9,6
		3	4	3000	6,4
IPM 90S V400	400	2,2	3	1500	5,1	14
		4	5,5	3000	9,4	13
IPM 90L V400	400	3	4	1500	6,7	19
		5,5	7,5	3000	13,6	17,5
IPM 100LA V400	400	3	4	1500	7,3	19
		5,5	7,5	3000	13,8	17,5
IPM 100LB V400	400	4	5,5	1500	9	25,5
		7,5	10	3000	18	24
IPM 112A V400	400	4	5,5	1500	8,8	25,5
		8	10	3000	17,9
IPM 112B V400	400	5,5	7,5	1500	13,1	35
		11	15	3000	26,2
IPM 112C V400	400	7,5	10	1500	16	48
		15	20	3000	32
IPM 132M V400	400	11	15	1500	24,2	70
		22	30	3000	50,5
IPM 132ML V400	400	15	20	1500	32	95,5
		30	40	3000	67,2
