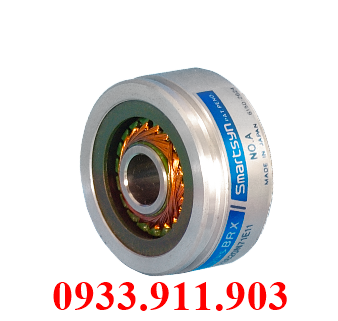

TS2641N11E64 Bộ phân giải không chổi quét loại rỗng Tamagawa, Tamagawa Viet Nam
Model: TS2641N11E64
Hãng: Tamagawa
ĐẶC TÍNH KỸ THUẬT:
Điện áp: AC7 Vrms 10 kHz
Tỷ lệ biến đổi [K]: 0,5 ± 5%
Tốc độ quay: 5,000 min-1{rpm}
Nhiệt độ: -10 ℃ to +80 ℃
Hotline: 0933.911.903
Liên hệ với chúng tôi để có thêm thông tin và giá tốt nhất!
Brushless resolvers (Smartsyn)
Shaft Type
Rotation angle sensor with excellent environmental resistance performance Brushless resolver.
Features
- ● Wide temperature range
［Temperature Range -55 to +155 ℃ （※）］
※Built-in type only - ● Superior environment resistance:Superior environment resistance
・Vibration: 196 m/s2{20 G} at 10 Hz .500 Hz, for 2 hours to each of three axes.
・Shock: 981 m/s2{100 G} for 6 ms, 3 times to each of 6 axes, 18 times in total - ● High speed rotation
- ● High reliability
Does not use electrical parts, optical parts. Maintenance-free for its brush-less feature. - ● Absolute position detection
- ● Long-distance transmission
Resistant to noise and long distance transmission is possible. - ● Capable of compact incorporation
The use of built-in types of Smartsyn minimizes housings of motors. Best suited for compact design - ● Small & Light Weight
- ● Multipolarization is possible by increasing the multiplication factor ofangle.
Specifications (Hollow Shaft types)
Size 21 Model TS2641N11E64 Type 1X-BRX Primary R1-R2（Rotor） Input voltage AC7 Vrms 10 kHz Transformation ratio [K] 0.5±5 % Electrical error (Accuracy) ±10' Max Residual voltage 20 m Vrms Max Phase shift -5 ° Nom Input impedance Zro 190Ω Output impedance Zso 300 Ω Nom Zss 270 Ω Nom Allowable rotation speed 5,000 min-1{rpm} Operating temperature range -10 ℃ to +100 ℃ Dielectric strength AC500 Vrms 1 min Insulation resistance 100 MΩ Min Mass 0.3 kg Nom Output voltage equation +type Accessory M3 Hexagon socket set screw × 2 pieses ※Nom：Nominal value
REF ： Reference valueOutline(Hollow Shaft types)
